If you've been comparing aluminum outdoor products, you've probably seen "6063-T5 aluminum" mentioned repeatedly. It shows up on premium gate specifications, architectural aluminum systems, and high-end pergola builds. But what does it actually mean — and does it matter for your project? We've been manufacturing custom aluminum outdoor products for over 20 years. Here's the plain-English explanation of what this alloy designation means, why we use 100% virgin aluminum, and how to tell the difference between real 6063-T5 and budget alternatives that look similar on paper.

What "6063-T5" Actually Means: Decoding the Alloy Designation

Aluminum alloys follow an international numbering system. "6063-T5" isn't marketing language — it's a precise specification. Here's what each part means.

6063: The Alloy Composition

6063 is an aluminum-magnesium-silicon alloy (Al-Mg-Si). The numbers tell the story:

6xxx series: Al-Mg-Si alloys, known for excellent extrudability, good corrosion resistance, and attractive surface finish after powder coating.
6063 specifically: Sometimes called "architectural aluminum alloy" — it was developed specifically for architectural applications where surface finish quality, complex extrusion profiles, and corrosion resistance all matter.

The key alloying elements:

Magnesium (Mg): 0.45–0.9% — contributes to strength through precipitation hardening.
Silicon (Si): 0.2–0.6% — combines with magnesium to form Mg₂Si precipitates, which strengthen the alloy during heat treatment.
Iron (Fe): ≤ 0.35% — a controlled impurity; higher levels reduce surface finish quality.

Compare this to 6061 (another common alloy): 6061 has higher magnesium and silicon content, making it stronger but less extrudable. 6063 trades some strength for significantly better surface finish and extrudability — the ability to be pushed through complex die shapes. For custom gates with CNC-engraved patterns, decorative pergola profiles, and slim railing sections, that extrudability is essential.

T5: The Temper Designation

"T5" is a temper designation — it describes how the aluminum was heat-treated after extrusion.

T: Thermally treated (as opposed to H = strain hardened).
T5 specifically: High-temperature forming followed by rapid cooling, then artificial aging at elevated temperature.

The artificial aging step precipitates the Mg₂Si particles evenly throughout the alloy matrix, increasing yield strength and tensile strength to the T5 specification range. This isn't something a factory can skip or shortcut — it requires controlled oven temperatures and precise timing.

Other common tempers you may see:

T6: Solution heat-treated + artificially aged — slightly higher strength than T5, but more expensive to process; common in structural applications.
O: Annealed — soft, low strength; used for forming operations, not finished products.

For outdoor architectural products, T5 offers the optimal balance: sufficient strength for structural sections, excellent surface finish for coating adhesion, and cost-effective processing. T6 is occasionally specified for very large structural sections, but for gates, fences, pergolas, and railings, T5 is the industry standard.

Why 6063-T5 Dominates Architectural Aluminum

Four properties make 6063-T5 the default choice for premium outdoor aluminum products:

1. Extrudability

Complex profiles — slim railing infills, decorative gate pickets with custom cross-sections, pergola beams with integrated drainage channels — can only be achieved with an alloy that flows cleanly into the extrusion die. 6063 has exceptional extrudability compared to 6061 or 6005A. This is why you see more design freedom in 6063-T5 products: the alloy itself enables more complex shapes.

2. Surface Finish Quality

After extrusion, aluminum surfaces need to accept powder coating with excellent adhesion and uniform appearance. 6063 has lower iron content than 6061, which translates to fewer surface impurities and a clean substrate for coating. For architectural products where visual quality matters — visible gate pickets, pergola beams, railing posts — this surface quality is noticeable.

3. Corrosion Resistance

The natural aluminum oxide layer forms readily on 6063-T5, providing inherent corrosion resistance. Aluminum does not rust (rust is specifically iron oxide). Its passive oxide layer (Al₂O₃) forms instantly when bare aluminum contacts air and seals the surface. For outdoor applications, this is the single biggest advantage over item structures of alternative metals.

4. Strength-to-Weight Ratio

6063-T5 has a tensile strength in the range of 145–185 MPa. That's lower than structural steel, but aluminum's density is about one-third that of steel. The result: an aluminum gate section can be designed to handle the same loads as a heavier iron gate, with significantly less dead weight. For automation motors, gate posts, and hinges, this weight difference is substantial.

Why We Use 100% Virgin Aluminum — and Never Recycled

"We use 100% virgin aluminum, no recycled content." This isn't a marketing claim — it's a manufacturing decision rooted in one principle: good material + good craftsmanship = good quality.

What "Virgin Aluminum" Means

Virgin aluminum is produced from primary smelter-grade alumina (refined from bauxite ore). Every production batch has tightly controlled chemical composition — the magnesium, silicon, and iron content fall within the 6063 specification range, every time.

This consistency is the foundation of quality manufacturing. When you know exactly what your raw material composition is, you can engineer weld parameters, heat treatment cycles, and quality control checks with precision.

The Problem with Recycled Aluminum

Recycled aluminum is made from post-consumer or post-industrial aluminum scrap. The core issue isn't strength — properly refined recycled aluminum can meet mechanical specifications. The issue is batch-to-batch consistency.

Different scrap sources introduce different trace impurities. One batch of recycled ingot may have slightly elevated iron content; the next may have trace elements from unknown alloy mixing. Modern refining can remove many impurities, but some variation between melting batches is inevitable.

For non-structural applications, this variation doesn't matter much. But for structural outdoor products — gate frames that support automation motors, fence posts that face wind loads, pergola beams that span several meters — consistent material properties across every production batch are critical. A welded joint is only as strong as the weakest point in the material. Inconsistent impurity levels create inconsistent weld quality.

Why "Good Material + Good Craftsmanship = Good Quality"

This is a simple equation, but it's easy to compromise. Using recycled aluminum to save material cost is a common industry practice — and for many applications, it's perfectly acceptable. But once you allow recycled content into your raw material stream, you introduce a variable that you then have to manage with additional testing and quality control.

We chose the simpler path: 100% virgin 6063-T5 aluminum, every batch, every order. No variability to manage. No additional testing required. The material is consistent, so the craftsmanship can be consistent.

The Market Reality

Many aluminum outdoor products on the market use recycled-content aluminum — sometimes blended with virgin, sometimes 100% recycled. It's environmentally friendly and cost-effective. But if your priority is consistent structural performance and weld quality, virgin aluminum is the safer choice. We're upfront about this: if you're comparing on price alone, products using recycled aluminum will likely cost less. If you're comparing on material consistency and quality assurance, virgin aluminum is the better answer.

How 6063-T5 Performs in Real-World Conditions

Material specifications on paper matter less than how the material actually behaves outdoors, year after year.

Coastal Properties

Aluminum's corrosion resistance comes from its passive oxide layer (Al₂O₃). This layer forms instantly when bare aluminum contacts air, and it self-repairs if scratched. For coastal properties with salt spray exposure, aluminum performs far better than iron (which actively corrodes once coating is breached) and wood (which absorbs moisture and degrades).

Our standard finish uses Austria-imported TIGER Drylac® powder coating combined with PVDF fluoropolymer technology as our standard configuration for all export products, ensuring maximum weather resistance and color integrity in any climate.

Humid and Rainy Climates

In temperate rainy climates, 6063-T5 with proper powder coating performs reliably. The aluminum itself is unaffected by moisture. The powder coating provides a durable barrier that protects the substrate. The key factor in real-world performance is the quality of the coating application — proper surface pretreatment, even coating thickness, and adequate curing all matter.

Temperature Extremes

6063-T5 maintains its mechanical properties across a wide temperature range. Aluminum does have a higher coefficient of thermal expansion than steel — it expands and contracts more with temperature changes. For long-span pergola beams or sliding gate tracks, this thermal movement needs to be accounted for in the design. This is a design consideration, not a material limitation — proper engineering handles it.

How to Spot Quality Aluminum Products (and Avoid the Budget Ones)

✅ Wall Thickness

Ask for wall thickness specifications. Budget aluminum products often use thin-wall extrusions to save material cost. For structural gate frames and fence posts, proper thickness determined by engineer standards is appropriate for most residential applications.

You can often tell by feel: a thin-wall extrusion feels light and "tinny"; a proper-wall-thickness section feels substantial. Our UK client's comment — "The weight surprised me — in a good way. It feels substantial. I can tell this is real material." — was about this exact difference.

✅ Welding Quality

If the product has welded joints (custom gates and pergola frames almost always do), ask for weld close-ups. Quality welds are:

Continuous (no gaps or stops along the joint)
Smooth (no excessive build-up or globbing)
Free from porosity (tiny gas bubbles visible as pits)
Properly finished (ground flush where the weld sits in a visible area)

Poor welds aren't just an aesthetic issue — they're structural weak points. And weld quality is directly affected by material consistency: virgin aluminum with controlled impurity levels welds more predictably than recycled-content aluminum with variable composition.

✅ Coating Quality

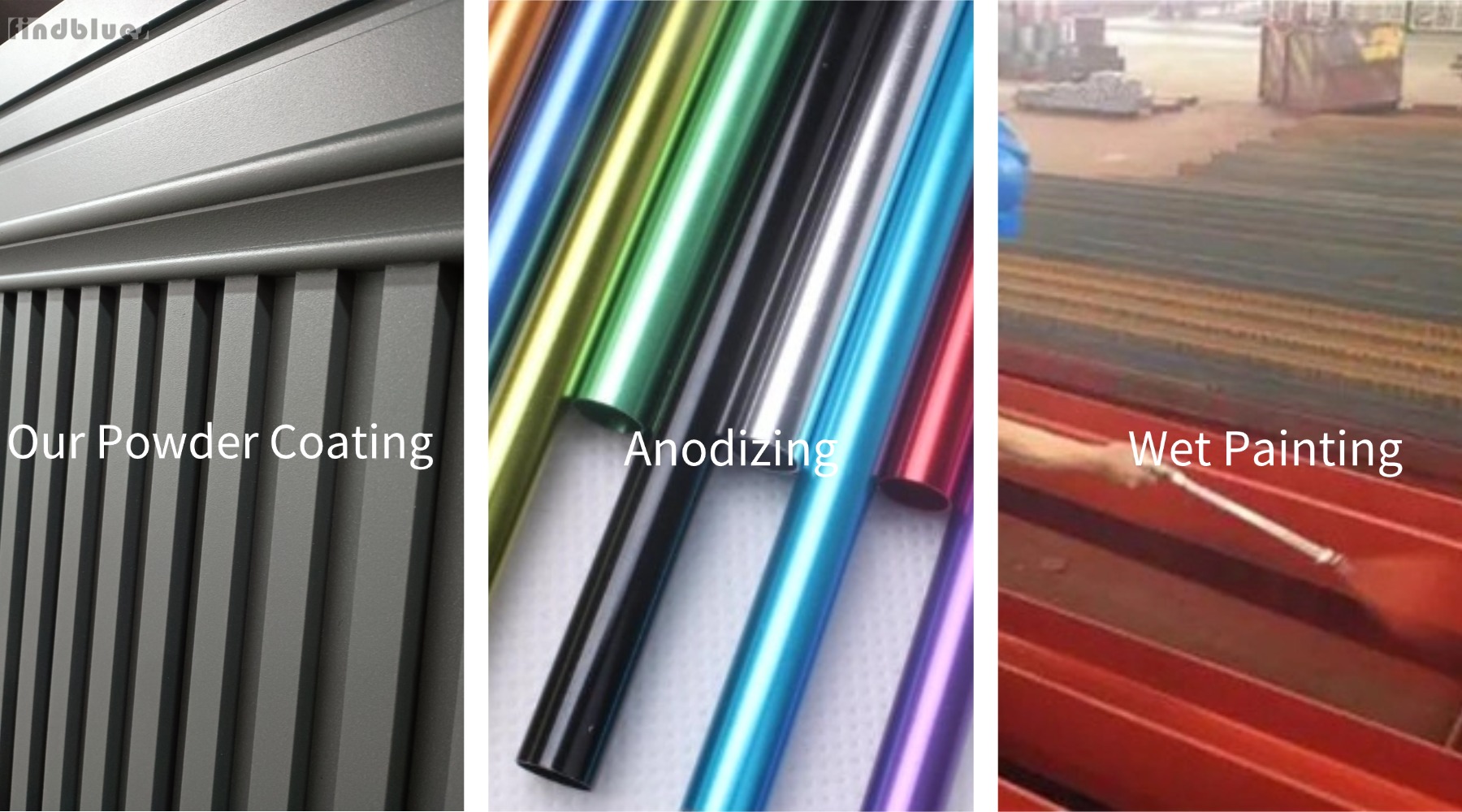

Ask what coating system is used. "Powder coating" is a broad term — but you don't need to ask for laboratory test data to evaluate coating quality.

What you can ask:

Is it finished with TIGER Drylac® + PVDF coating?
Are they using 100% virgin aluminum as the substrate?
Can they show you coating close-ups on finished products?

A quality supplier should be able to answer these questions confidently. If they can't clearly explain their coating system, that's a red flag. At FindBlues, we use TIGER Drylac® + PVDF coating as our standard, ensuring maximum finish longevity.

FAQ: 6063-T5 and Aluminum Quality Questions

Q: Is 6063-T5 the strongest aluminum alloy?

A: No. 7075 aluminum (an Al-Zn alloy) is significantly stronger — but it's also much more expensive, less corrosion-resistant, and far less extrudable. For outdoor architectural products, 6063-T5 offers the best balance of strength, corrosion resistance, surface finish, and cost. If a supplier claims their aluminum is "the strongest alloy available," ask which alloy specifically — and why that alloy was chosen over more practical alternatives.

Q: Can 6063-T5 rust?

A: No. Aluminum does not rust (rust is specifically iron oxide). Aluminum forms a protective oxide layer that prevents further oxidation. In extreme conditions (e.g., galvanic corrosion when aluminum contacts certain other metals in a saltwater environment), aluminum can corrode — but this is a different mechanism from rust. For normal outdoor use, aluminum is inherently corrosion-resistant.

Q: Does 6063-T5 work for all outdoor aluminum products?

A: For gates, fences, pergolas, railings, and window/door frames — yes, it's the industry standard. For applications requiring higher structural strength (long-span structural beams, heavy-duty commercial gates), 6061-T6 or 6005A-T6 may be specified. The choice depends on the engineering requirements of the specific application.

Q: How long does 6063-T5 aluminum last outdoors?

A: The aluminum alloy itself is metallurgically stable — it does not degrade structurally over time. With proper powder coating, the protective finish remains effective for decades. In intense UV environments, coating colors may gradually lighten over an extended timeframe, but the aluminum substrate remains fully protected. This is a materials-science fact: aluminum's passive oxide layer is self-repairing and permanent.

Q: Why does FindBlues use 100% virgin aluminum?

A: Because good material + good craftsmanship = good quality. Virgin aluminum has consistent composition from batch to batch, which means predictable welding performance, reliable structural properties, and fewer quality variables to manage. We'd rather control the material quality than manage the variability that recycled aluminum introduces — especially for structural outdoor products where consistency matters.
