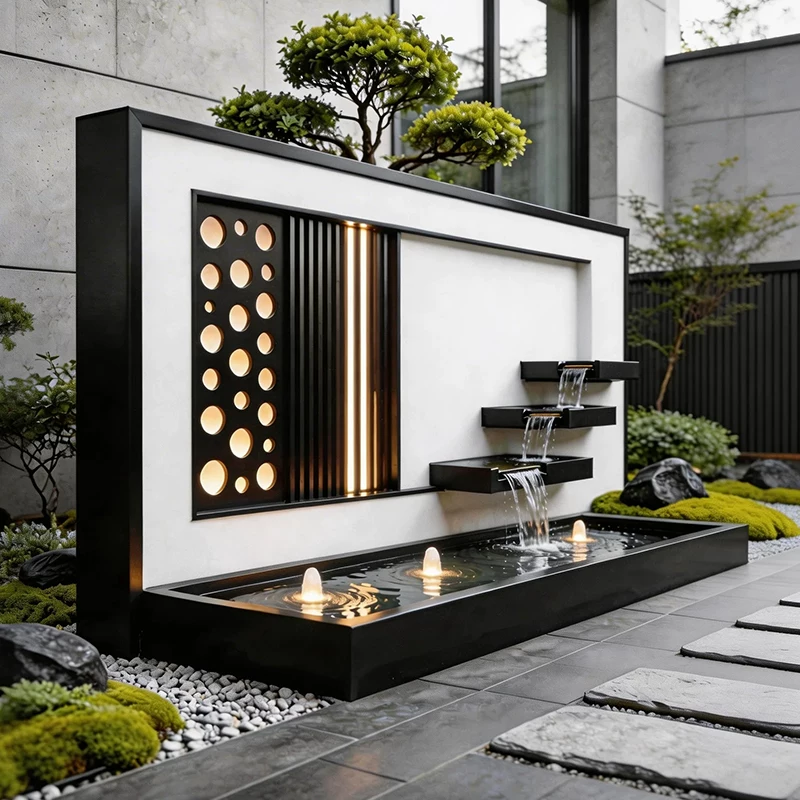

Bespoke Architectural Water Feature Wall
Integrated Recirculating System reservoir detail

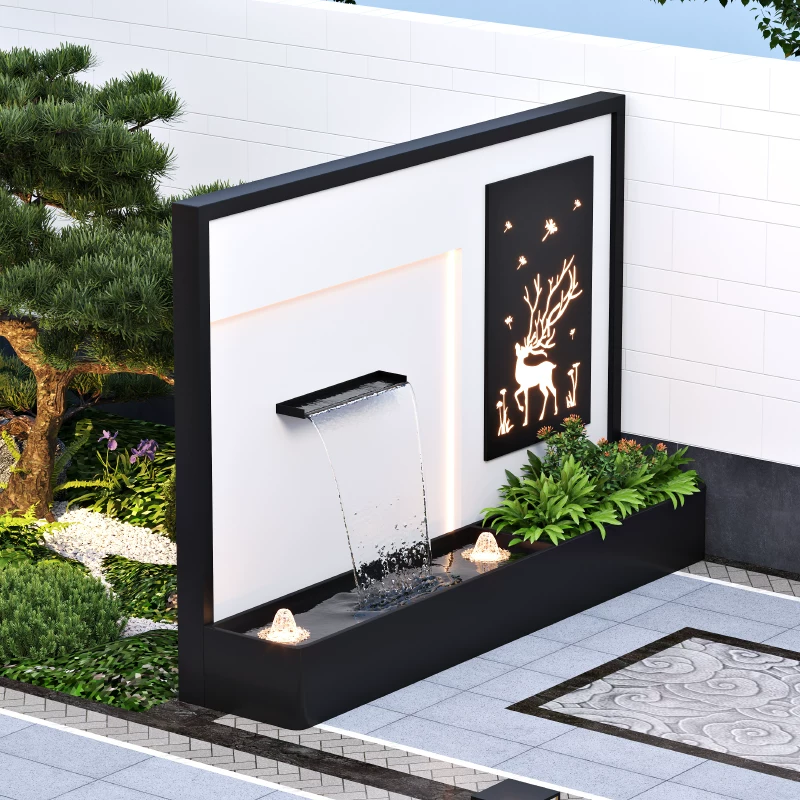

Cascading Sheet-Fall Blade overflow mechanism

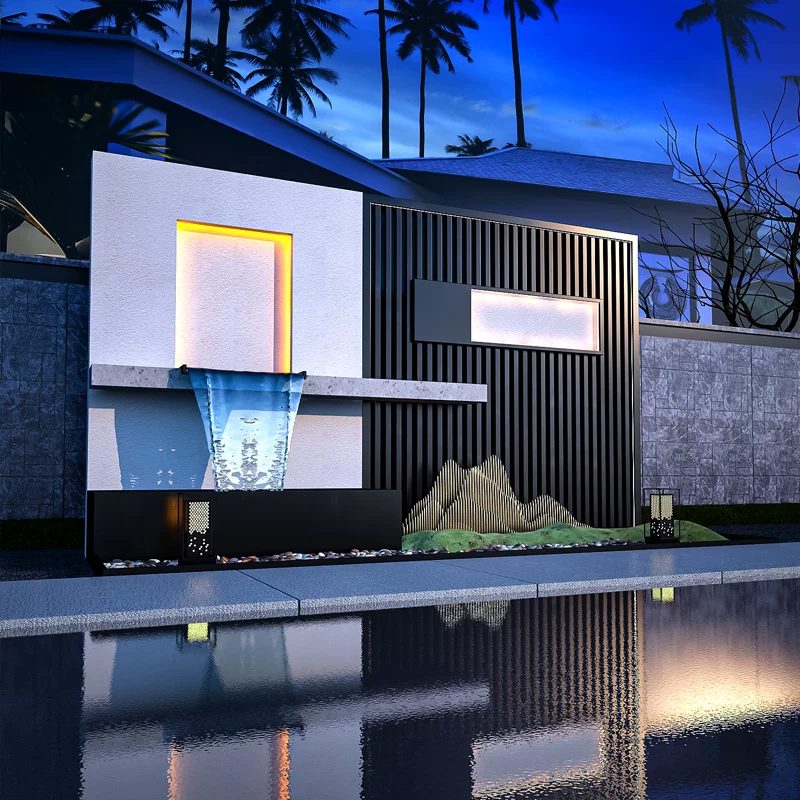

Pre-integrated LED channel connection detail
+4 VIEWS
Direct Manufacturer

Aluminum Water Feature Wall — Cascading Waterfall & Fountain Screen

Product Line: FindBlues Aluminum Water Feature Wall (Model: FW-300)

Our aluminum water feature walls transform outdoor gardens, poolside areas, hotel lobbies, commercial atriums, and public spaces into calming, dynamic environments. The entire structural frame is fabricated from extruded 6063-T5 aluminum alloy — from the main panel to the support frame and integrated reservoir base — delivering a rust-free, lightweight system that outlasts steel alternatives in constant water contact.

Water flow configurations include cascading sheet-fall (smooth curtain effect), multi-spout fountain (rhythmic individual streams), and letterbox blade (clean linear overflow). Each configuration creates a distinct visual character and ambient water sound — from a gentle murmur to a more pronounced cascade.

The panel surface can be finished as solid aluminum, perforated pattern, laser-cut decorative screen, or combined with tempered glass sections. This allows the water wall to function simultaneously as a privacy screen, architectural cladding element, and water feature — three purposes in one structure.

An integrated recirculating system (pump, internal piping, and concealed reservoir) is built into the unit so it arrives ready to install — simply connect power and fill with water. Integrated LED strip lighting along the water channel is available as an option, creating dramatic illumination effects for evening use.

Surface protection uses our standard powder coating. For B2B export, we provide Austria-imported TIGER Drylac® powder coating combined with PVDF fluoropolymer technology as our standard configuration for all export products, ensuring maximum weather resistance and color integrity in any climate. We do not use domestic powder coatings or offer separate tiers — this premium formulation is applied to every export product without exceptions.

Technical Specifications

Base Material: Virgin 6063-T5 Aluminum Alloy
Structure: All-Aluminum Frame & Reservoir
Panel Type: Solid / Perforated / Laser-Cut / Glass
Water Flow: Cascading Sheet-Fall / Multi-Spout / Blade
Standard Dimensions: Custom (Typical: 1.5–3.0m W × 1.2–2.5m H)
Thickness: 2.0–3.0 mm
Installation: Freestanding or Fixed-Mounted
Recirculating System: Integrated pump, piping & reservoir
Surface Protection: TIGER Drylac® + PVDF Coating (Standard on All Export Products)
Color Options: Full RAL Custom
Lighting Option: Integrated LED strip (optional)
Lead Time: 20-30 Days
Packaging: Fumigation-free export plywood crate with foam protection
Engineered Excellence

Key Features of FW-300 Water Feature Walls

1. 100% Aluminum Structure

Posts, panel, reservoir — all aluminum. Zero steel components exposed to water, no hidden timber. Corrosion-free even under constant moisture.

2. Three Water Flow Styles

Cascading sheet-fall for a smooth curtain effect, multi-spout for rhythmic texture, or blade overflow for clean linear flow — choose the mood you want to create.

3. Dual Function: Privacy Screen + Water Feature

Perforated or laser-cut panels provide visual screening while water flows over the surface. Architecture and nature in one element.

Expert Consultation

Frequently Asked Questions

Q: Can the water wall be integrated with planter boxes?

A: Yes. We can integrate custom modular planter boxes at the base of the water wall, allowing for cohesive landscaping arrangements where water flow is surrounded by natural foliage.

Q: What maintenance is required?

A: The recirculating pump needs periodic cleaning, and water should be topped up to account for evaporation. Thanks to TIGER + PVDF coating, the aluminum surface requires only simple washing to keep it clean.

Architectural aluminum water wall showing water cascade over textured panel.
